2-4 times Safety Factor
ISO 9001 Certification
G43 G70 G80 Grade Available
Carbon Steel or Alloy Steel Available
1/4” to 3/4” Sizes
HULK Metal will provide QA services to every Clevis Grab Hooks, and any quality issues can be properly resolved.
Here are the specifications of the Clevis Grab Hooks we can offer. The table contains information such as CODE, Size, WLL, etc. You can tell us directly about CODE and quantity, and we will give you a more satisfactory quote.
| NAME | Clevis Grab Hooks | |||||||
| CODE | SIZE(IN) | W.LL/lbs(4:1) | DIMENSIONS(MM) | WEIGHT | ||||
| - | - | CARBON | ALLOY | A | B | E | L | - |
| HM-CGH-14 | 1/4" | 2600 | 3500 | 8.5 | 25 | 9.2 | 78.5 | 0.36 |
| HM-CGH-516 | 5/16" | 3900 | 4700 | 10 | 30.5 | 11.2 | 93 | 0.62 |
| HM-CGH-38 | 3/8" | 5400 | 7100 | 13 | 35 | 12.7 | 114.5 | 1 |
| HM-CGH-716 | 7/16" | 7200 | 8750 | 17 | 42 | 14.5 | 126 | 1.5 |
| HM-CGH-12 | 1/2" | 9200 | 12000 | 19 | 47 | 17 | 144 | 2.22 |
| HM-CGH-58 | 5/8" | 13000 | 15800 | 23 | 56 | 20 | 177 | 4.41 |
| HM-CGH-34 | 3/4" | 20200 | 24700 | 24 | 66.5 | 24 | 207.5 | 6.5 |
If you want to buy a more suitable Clevis Grab Hooks, you must first have a better understanding of it. We are here to introduce in detail everything about it, what it is, its structure, its strength level, its usage, its production process, etc. If these are not comprehensive enough, you can also contact us to learn more.
It is designed based on the chain structure, its inner cavity is parallel and narrow, and can only allow the chain ring to pass horizontally. When it is stuck on the chain, the chain length cannot be adjusted anymore. This does not work if it is used to connect the wire rope. When we choose it to connect the chain, be sure to consider the thickness of the link and the width of the cavity. Its material is made of carbon steel and alloy steel. Our parameter table lists the performance of these two materials. Please choose the more appropriate one based on actual use.
Its structure includes clevis ear, hook body, clevis pin, safety pins. Because the structural characteristics of Grab Hooks make it difficult to decouple after connecting the chain, there is no latch structure.
Note: Clevis Ear and Hook Body are forged in one piece.
It is a structure with a certain width. Its function is to be stuck in a chain or wire rope with two holes on it, which facilitates the Clevis Pin to pass through and complete the link to the lifting end.
It is a thicker pin inserted into the hole of the Clevis Ear to link the lifting end and the Clevis Grab Hooks, which carry axial shear force during lifting.
Used to insert a hole at one end of the Clevis Pin to prevent it from being released from the Clevis Ear.
It is a hook-shaped structure, the inner wall is linear in shape and the end is semi-circular in shape, and the inner cavity only allows a series of specific thicknesses to enter. Because of this, once Clevis Grab Hooks hooks a certain chain link, it is impossible to adjust the chain length.Of course it can also be used to connect wire ropes of certain thickness.When choosing, be sure to consider the thickness of the chain ring and wire rope to avoid being unusable.
It can be classified according to strength, material, surface treatment, etc. Their functions are consistent, the difference is in WLL, appearance, and corrosion resistance. If you want to know more, you can contact us to get it.
We need to take out the Safety Pins and Clevis Pins (if they are separate from the Clevis Grab Hooks, this step is not needed).
We need to snap the Clevis Ear into the end of the chain or wire rope.
We need to insert the Clevis Pin into the hole of Clevis Ear and the Safety Pin into the hole of Clevis Pin, and then the Clevis Grab Hooks and the chain or wire rope is locked.
Hooks into the link specified by the load chain (the length of the chain needs to be calculated in advance) or wire rope and other objects, the tensioning machine slowly applies tension to keep the entire structure in a load balanced state to prevent decoupling.
After you inquire, we will arrange samples, confirm that the samples have passed your inspection and start mass production, raw material procurement, cutting, heating, forging, finishing, surface treatment, quality inspection, packaging and shipment, and after-sales service. We strictly implement ISO 9001 standard management, so you can purchase with confidence.
We directly purchase high-strength carbon steel or alloy steel rods from globally certified steel mills. Before the raw materials are put into use, they need to conduct chemical composition and mechanical properties sampling to ensure that the material meets the requirements of Clevis Grab Hooks.
We have CNC cutting equipment that can accurately divide the material according to the size of hook and ear pieces. The blank length is more consistent than the traditional method, providing the best blank for subsequent heat treatment and forging.
We use electromagnetic induction heating technology to make the blank reach the required temperature faster and the temperature uniformity reaches within ±5℃. It heats faster and more energy-efficient than old electric furnaces, while minimizing the growth of grains.
We use open die forging to complete the integrated forging and Clevis Grab Hooks are formed at one time.
We will conduct initial inspections of appearance and dimensions immediately after forging, and error control is stricter than the industry's general standards.
We will finely process Clevis pin holes, chamfers and flashes through the machining center to ensure that each hole is smoother and smoother, and prevent the concentration of obtuse stress.
We will spray hot-dip galvanized, electro-galvanized or high-temperature cured powder according to your needs, with higher corrosion protection than ordinary coatings.

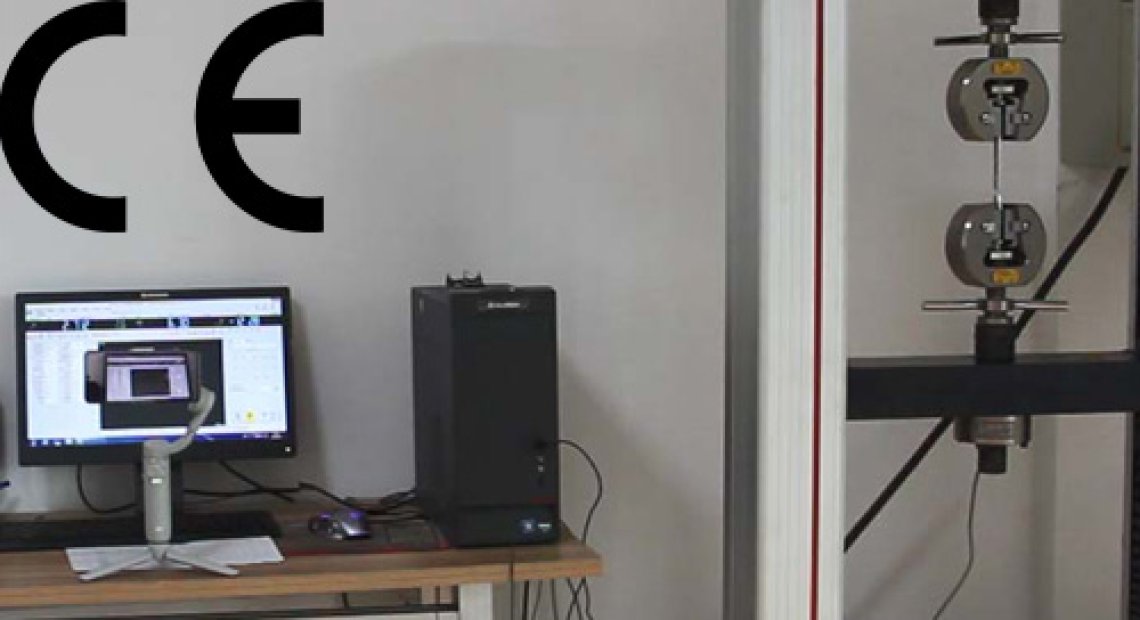

We will use a tensile testing machine to conduct 2 times working load detection and 4 times extreme load break test, and sample to perform hardness and impact tests. After passing, we use anti-rust paper and customized cartons to package them in batches to improve the transportation protection effect.
We will arrange wooden boxes in advance and arrange container trailers. We have a freight consulting center to help you find a more suitable international freight company.
We provide a full range of after-sales service to provide returns, exchanges and replenishment services for products with any quality problems.
Our quality control center can complete the inspection of Clevis Grab Hooks in terms of tolerances, shapes, surface treatment quality and more. In terms of tension detection, we will use 2 times the tension of safety factor to detect tension, and use 4 times the limit test. You can contact us at any time to visit the Quality Control Center.
We used electron microscope to detect the internal structure of Clevis Grab Hooks.
Hardness meter tests the hardness of Clevis Grab Hooks.
We will use a 2-fold safety factor tension to detect the load of Clevis Grab Hooks, and use a 4-fold safety factor tension to perform damage detection.
Ensure that Clevis Grab Hooks meet impact performance requirements.
HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3
HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~5.0
≥3

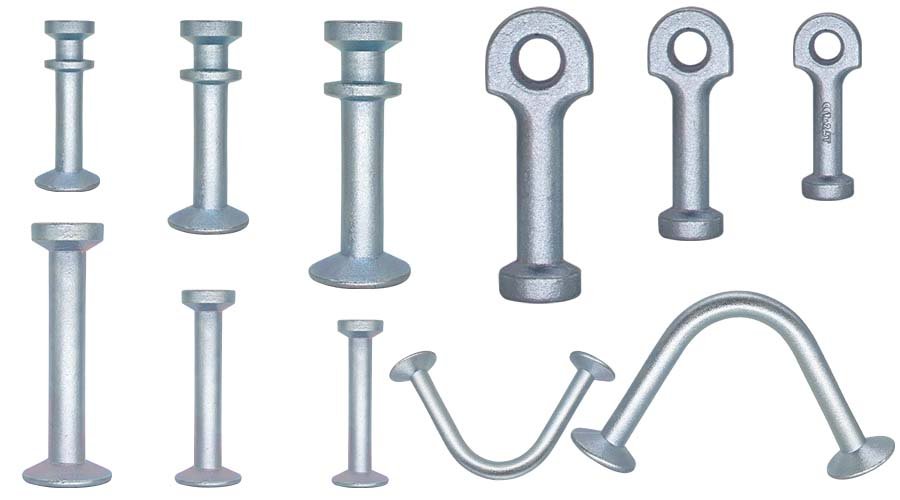

CE Certified Spherical Head Lifting Anchors
All Size of Spherical Head Lifting Anchors
Can Pass 3 Times Safety Equal
Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.
Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.
Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3

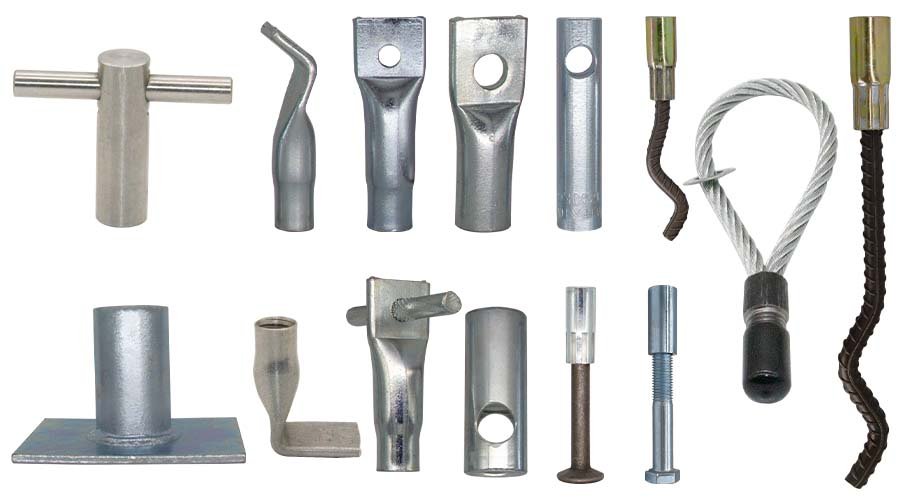

Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.
HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Flat End Lifting Socket
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3

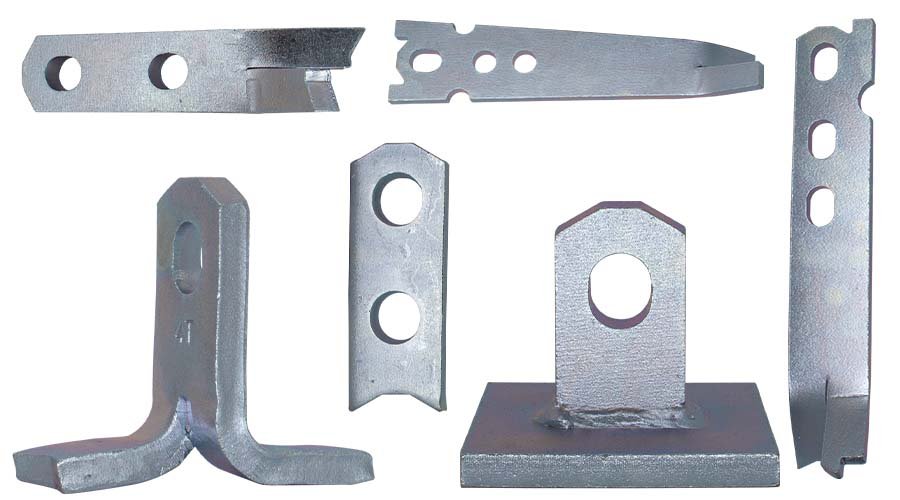

Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.
HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.
HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.
HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.
HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.

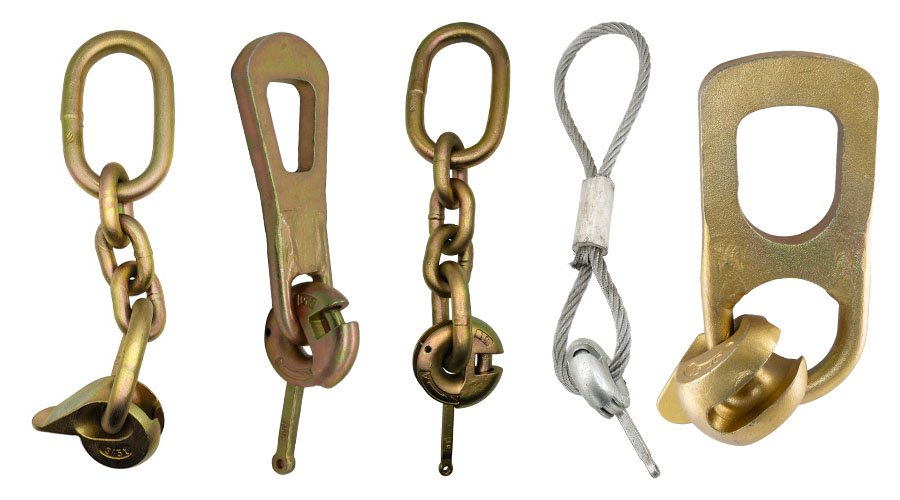

High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.
HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.
Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.
Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.
Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting

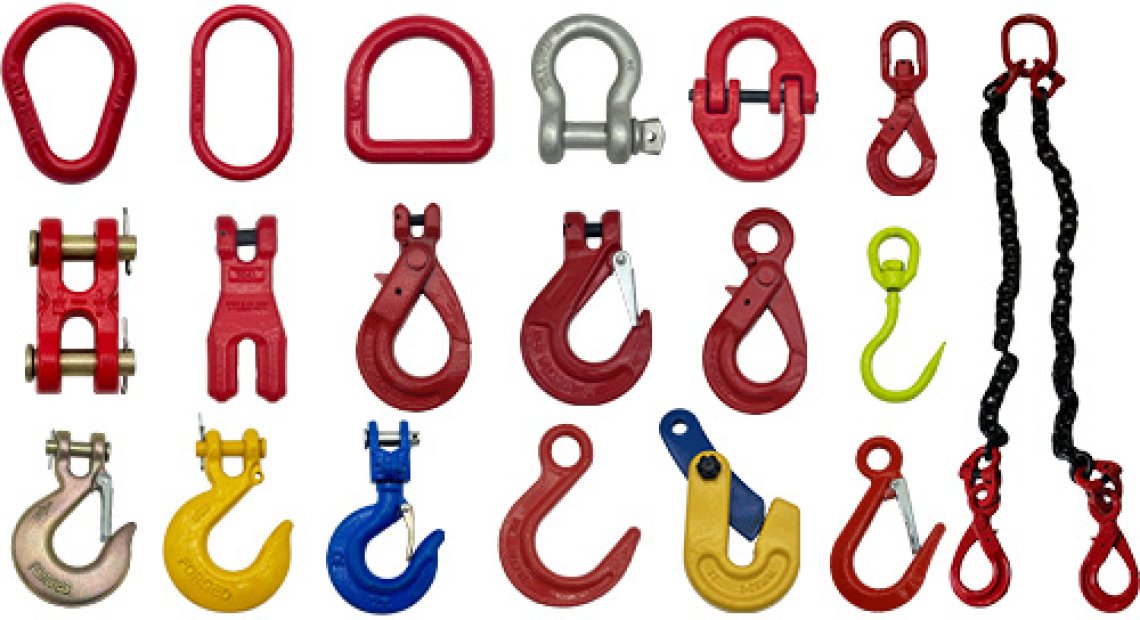

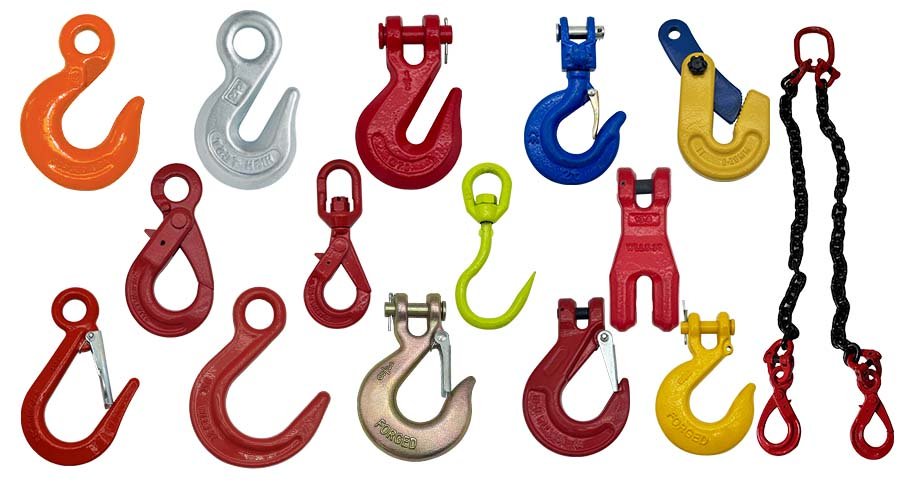

HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.
We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.
HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.
Rubber/Plastic
1.3~45.0

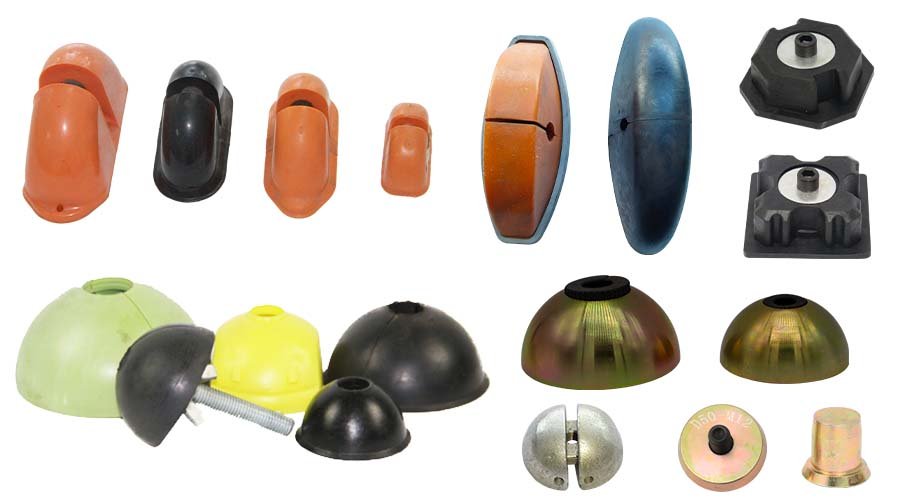

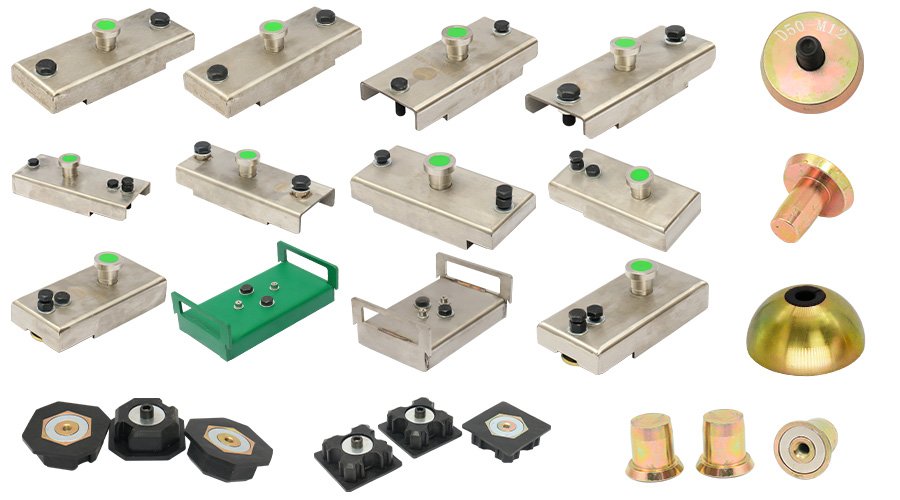

HULK Metal can provide a variety of precast magnetic formers. With higher quality and more affordable price, it is your best choice.
1. ISO 9001Certification
2. QA Services
3. Save More Money
4. Various Precast magnetic Formers
Rubber/Plastic
0.7~26
As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.
HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.
Electrical box magnets for precast concrete are magnets used to fix the electrical box in a specific position during the production of precast concrete. It is made of rubber bodies and NdFeB and can be used in square, round, and other shapes. The rubber part can be inserted into the electrical box, and the magnet part can fit firmly with the framework to embed the electrical box into the precast concrete.
HULK Metal's factory has advanced sheet metal cutting, bending, welding processes and equipment, which can efficiently complete CE certified Shuttering Magnets for Framework. We have a complete supply chain to help you handle all matters related to your order in China, which can help you save more time and energy. We can achieve full access to control costs so that you can complete your order with less money.
HULK Metal has an advanced CNC machining center, laser cutting center, and assembly center. Our factory strictly implements ISO 9001. Therefore, we can complete orders with a higher qualified rate faster.

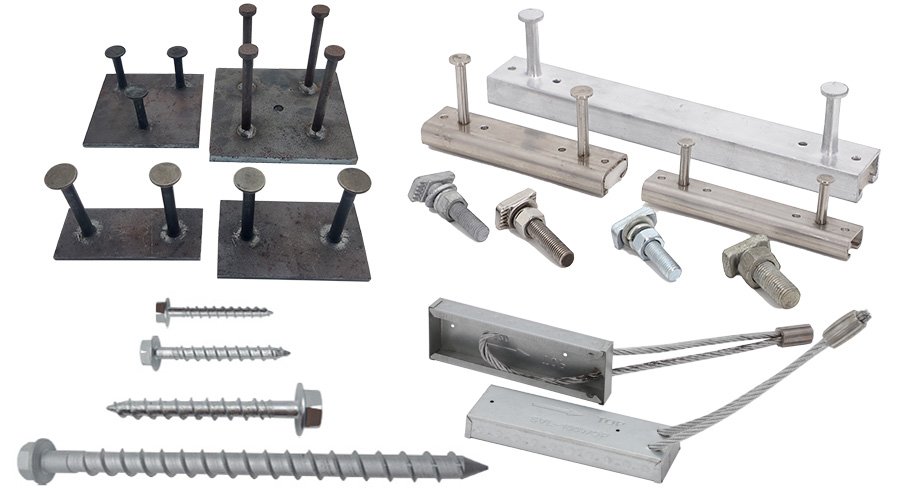

Name Halfen Anchor Channel Precast Concrete Accessories
