1. Higher Standard Certification
2. Perfect Production Solution
3. More Corrosion Resistant
4. Comprehensive After Service
5. Wide-ranging Application
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||
| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 176 | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

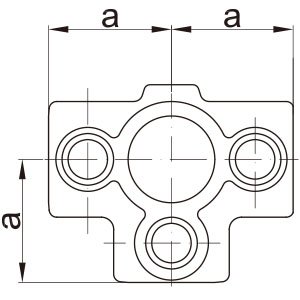

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| T | 15 | 1/2" | 21.3 | HM-G-176-T | HM-D-176-T | HM-PC-176-T | HM-B-176-T | 35 | |||
| A | 20 | 3/4" | 26.9 | HM-G-176-A | HM-D-176-A | HM-PC-176-A | HM-B-176-A | 40 | |||
| B | 25 | 1" | 33.7 | HM-G-176-B | HM-D-176-B | HM-PC-176-B | HM-B-176-B | 46 | |||
| C | 32 | 5/4" | 42.4 | HM-G-176-C | HM-D-176-C | HM-PC-176-C | HM-B-176-C | 60 | |||
| D | 40 | 3/2" | 48.3 | HM-G-176-D | HM-D-176-D | HM-PC-176-D | HM-B-176-D | 68 | |||
| E | 50 | 2" | 60.3 | HM-G-176-E | HM-D-176-E | HM-PC-176-E | HM-B-176-E | 84.5 | |||
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
33.7/26.9
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
48.3/42.4
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
42.4/48.3
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
42.4/33.7
42.4/48.3
48.3/42.4
603/48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
21.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
48.3
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
30~60
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
15~70
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~45
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
60.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
0~11
TUBE SIZE(mm)
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
Malleable Iron/Ductile Iron/Customizable
Galvanized/Powder-coat/Customizable
TUBE SIZE(mm)
26.9
33.7
42.4
48.3
Customizable
The 119A Galvanized Railing Connectors Add-on Two Socket Cross is different from the 119 type in that it can add two pipes to an already completed system.
119 Galvanized Safety Railing Fittings Two Socket Cross is used to add two pipes on the same plane to form a cross structure for a specific position of a pipe.
116A Galvanized Pipe Guardrail Fittings Add On Side-outlet Tee is used to add two perpendicular rails to an already assembled handrail or guardrail uprights, or to add two perpendicular pipes to an assembled DIY structure such as a cube or cuboid.
101 Reducing Short Tee Galvanized Pipe Railing Fittings are often used. HULK Metal is a well-known supplier in China. We look forward to your inquiry.
No. 101 galvanized pipe handrail fittings are used to connect two pipes into a "T" shape. It is also called Short Tee. One pipe is inserted into the socket and the other one passes through the channel above.
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
Safety rail fittings are slip-on pipe fittings for safety railings. They can be quickly installed to complete a system, are easy to operate, and have a longer life and better performance. The 125R reducing 90-degree elbow is a special and uncommon fitting used to connect two pipes of different thicknesses.
We can provide 21.3 mm to 60.3 mm size, that is, 1/2" to 2". We have a full range of molds, can complete each order faster.
124 type Galvanized Key Clamp Fitting uses 3 types of hot-dip galvanizing, double coating, and powder coating. We can provide 33.7mm, 42.4mm and 48.3mm diameters. We integrate a complete supply chain and a professional team to provide better products and services. Looking forward to your inquiry.
123 Type Galvanized Railing Fittings is a kind of elbow that can connect two pipes with an angle of 40° to 70°. We can provide two calibers: 42.4mm and 48.3mm. We will strictly implement ISO9001 to manage the supply chain and provide better products and services.
We integrated a complete supply chain, passed ISO 9001 certification, formed a professional technical team and produced a full range models of the galvanized pipe connector fittings to provide the best services and products. Looking forward your inquiry.
