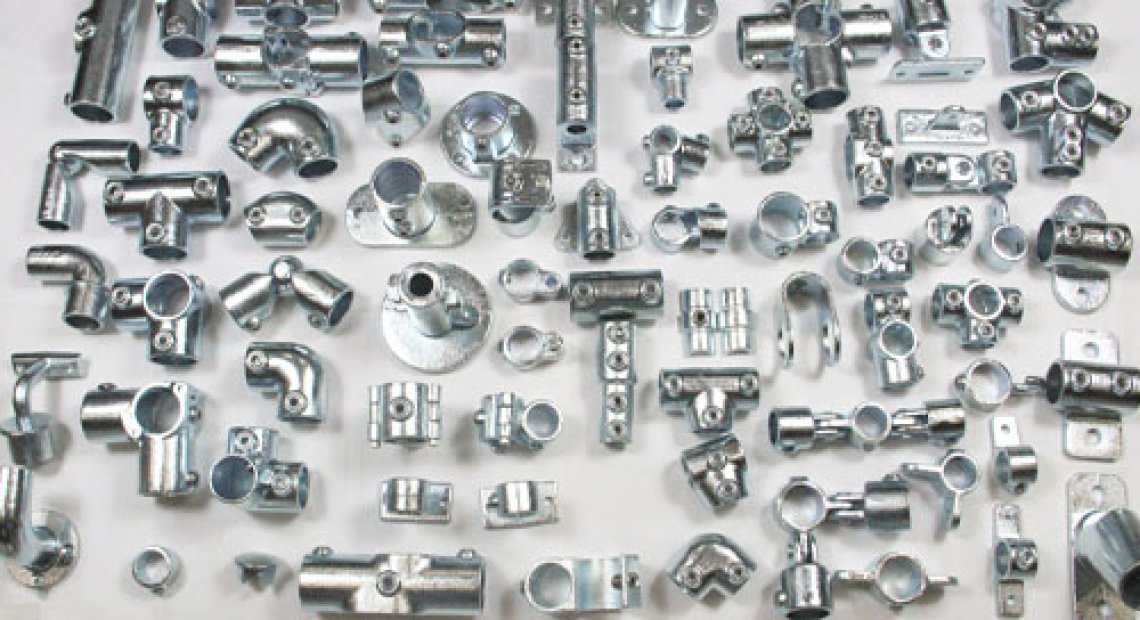

2. Various Type of Pipe Fittings
3. Deliver Goods Faster
4. Bigger Order Cheaper Price

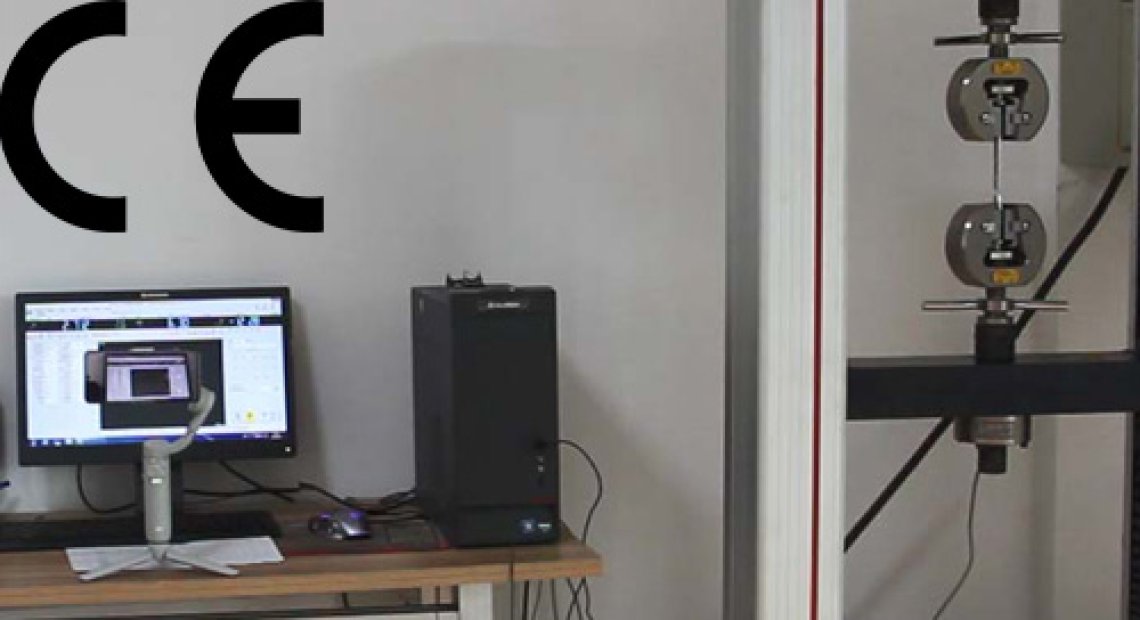

5. QA Service
Comprehensive After Service
We can use 104 Long Tee to make three pipes of the same thickness into a "T" shape. It has three sockets, each with a hexagon socket bolt. When using it, we only need to insert the three pipes into the sockets and tighten the bolts.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

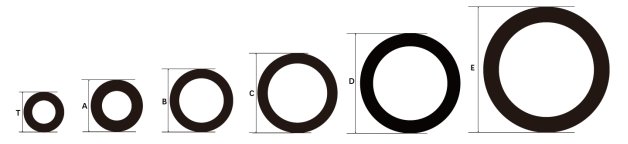

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 104 Galvanized Slip-on Pipe Fittings Long Tee | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

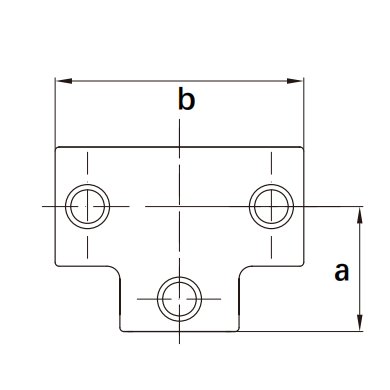

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| A | 20 | 3/4" | 26.9 | HM-G-104-A | HM-D-104-A | HM-PC-104-A | HM-B-104-A | 41 | 82 | ||
| B | 25 | 1" | 33.7 | HM-G-104-B | HM-D-104-B | HM-PC-104-B | HM-B-104-B | 46 | 92 | ||
| C | 32 | 5/4" | 42.4 | HM-G-104-C | HM-D-104-C | HM-PC-104-C | HM-B-104-C | 60 | 120 | ||
| D | 40 | 3/2" | 48.3 | HM-G-104-D | HM-D-104-D | HM-PC-104-D | HM-B-104-D | 68 | 136 | ||
| E | 50 | 2" | 60.3 | HM-G-104-E | HM-D-104-E | HM-PC-104-E | HM-B-104-E | 84 | 168 | ||
104 galvanized slip-on pipe fittings long tee can be used to add two horizontal pipes to the guardrail or handrail uprights, or to connect two pipes in a DIY structure and add a vertical pipe to them.
Galvanized slip-on pipe fittings are made of cast iron. Only after surface treatment such as galvanizing or powder coating can they have better corrosion resistance and oxidation resistance and be used in more environments such as outdoor and factories.

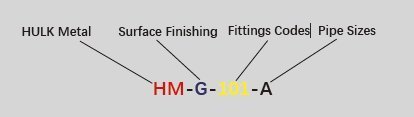

This table shows the models and codes of 104 Long Tee that we can produce. We provide quality assurance services. You can purchase them with confidence.
