1. 1500,5000, 10000, 12000LBS, 20000LBS
2. ISO 9001 Certification
3. Suit For 4.5 mm to 31.8mm ABC
4. Stronger Performance
5. Factory Direct Sales
ABC Conductor Grips are special tools designed for ABC wire pulling, tightening and other working environments. Its clamp can better protect the ABC when pulling. We offer a variety of ABC Conductor Grips. Contact us for better prices.
We have 4 types of ABC Conductor Grips to choose from, Load Capacity, ABC diameter, CODE and product image information can be found in the table below. You can also click the button on the right side of the image to download them directly.
Picture | |||||||
Code | WLL | Cable Diameter | |||||
Unit | lbs | KN | Ton | in | mm | ||
HM - GTA - 050 - 060 | 5000.0 | 20.0 | 2.0 | 0.2 | 0.6 | 4.5 | 15.0 |
HM - GTA - 100 - 080 | 10000.0 | 45.0 | 4.5 | 0.3 | 0.8 | 8.0 | 20.0 |
HM - GTA - 120 - 080 | 12000.0 | 53.3 | 5.4 | 0.7 | 1.3 | 17.8 | 31.8 |
Picture | |||||||
Code | WLL | Cable Diameter | |||||
Unit | lbs | KN | Ton | in | mm | ||
HM - GTB -120 - 125 | 12000 | 54 | 5.4 | 0.7 | 1.25 | 18 | 32 |
Picture | |||||||
Code | WLL | Cable Diameter | |||||
Unit | lbs | KN | Ton | in | mm | ||
HM - GTC- 050 - 080 | 5000 | 20 | 2 | 0.2 | 0.8 | 5 | 22 |
Picture | |||||||
Code | WLL | Cable Diameter | |||||
Unit | lbs | KN | Ton | in | mm | ||
HM - GAA - 015 - 120 | 1500 | 6.8 | 0.68 | 0.8 | 1.2 | 2.03 | 5.08 |
Picture | |||||||
Code | WLL | Cable Diameter | |||||
lbs | KN | Ton | in | mm | |||
HM - GFB - 200 -180 | 20000 | 90.0 | 9 | 1.24 | 1.8 | 31.5 | 45.7 |
ABC Conductor Grips are pliers designed to hold ABC wires, and are used to tighten and route ABC wires. They come in a variety of styles, designed by different companies. The most common ones are Japanese and American standards. The main parameters are load capacity and the outer diameter (overall diameter) of the ABC that can be held.
ABC Conductor Grips has a straight jaw design, and the jaws have shallow and dense anti-slip grooves inside, which can protect the outer rubber and provide a stronger anti-slip effect. ABC Conductor Grips with baffles can also prevent the cable from slipping out from the side. Other structures vary depending on the model. They are all designed to be more convenient for operators to use and provide stronger clamping force and load capacity.
Its internal spring uses a high-performance spring that can be repeatedly extended and retracted thousands of times.
We use high-performance alloy steel to manufacture ABC Conductor Grips instead of Aluminum alloy.
Most of its parts are produced by hot die forging, the baffles are completed by laser cutting, and the parts are assembled by our assembly line after galvanizing.
Its surface treatment: It is completed by electroplating. Its average coating thickness is 5μm.
When you choose HULK Metal’s Jaw Rope Puller, you gain access to a fully integrated sourcing solution that covers every step from raw material acquisition to finished-tool delivery. Our experienced procurement team works directly with certified steel mills and alloy suppliers to secure high-grade metal billets, while our in-house forging and machining facilities transform these billets into precision Jaw Rope Puller components. You no longer need to juggle multiple vendors or worry about inconsistent quality—every element, from springs to zinc plating, is coordinated under one roof. This streamlined approach reduces communication overhead and guarantees that your Jaw Rope Puller orders arrive complete, compliant, and ready for immediate deployment.
Time-to-market is critical when deploying cable-tensioning equipment in field operations. HULK Metal’s vertically integrated production means your Jaw Rope Puller bypasses the delays typical of external subcontractors or international shipping chains. Our automated forging lines, precision CNC machining, and rapid zinc-plating process work in concert to compress lead times. Meanwhile, our dedicated QA inspectors conduct in-process checks so you never have to halt work for re-inspections. From order placement to gate release, you save countless hours on vendor coordination, quality follow-ups, and logistics tracking—freeing your team to focus on installation, commissioning, and project milestones.
We have multiple automated forging production lines and efficient surface treatment workshops across the country, with sufficient and stable production capacity. At the same time, due to long-term cooperation with many high-quality logistics service providers, we can arrange land, air or sea transportation for you as soon as possible to meet the delivery needs of different projects. Even for large-volume orders, the production cycle of Jaw Wire Puller can be compressed to the shortest through scientific scheduling. In addition, our after-sales team will confirm the arrival time with you in advance and provide clear logistics tracking information to ensure the safety and timely delivery of the goods, so as to help your project start and implement on time.
Quality underpins performance in the most demanding tension-pulling applications—and our Jaw Rope Puller is engineered to excel. Each assembly is forged from high-performance alloy steel, then heat-treated and laser-cut to exacting tolerances. We employ ISO 9001-certified workflows throughout forging, machining, plating, and assembly, ensuring consistent clamping force, precise jaw alignment, and durable anti-slip teeth. Our proprietary spring design maintains jaw closure over thousands of cycles, while our uniform 5 µm zinc finish resists corrosion even in harsh environments. The result is a Jaw Rope Puller that delivers repeatable performance, minimal downtime, and maximum safety across the full range of wire, cable, and rope diameters.
Relying on HULK Metal's complete industrial chain advantages, we can achieve scale effects in raw material procurement, production and processing, and logistics, thereby greatly reducing the manufacturing cost of each piece. Under the same quality and performance standards, the price of Jaw Wire Puller we provide is more competitive. At the same time, due to the high factory qualified rate of products, the maintenance and replacement costs during use are also reduced accordingly. Long-term cooperative customers can also enjoy tiered discounts and customized value-added services to further reduce the overall procurement cost. Choosing HULK Metal means obtaining greater cost-effectiveness while ensuring quality.

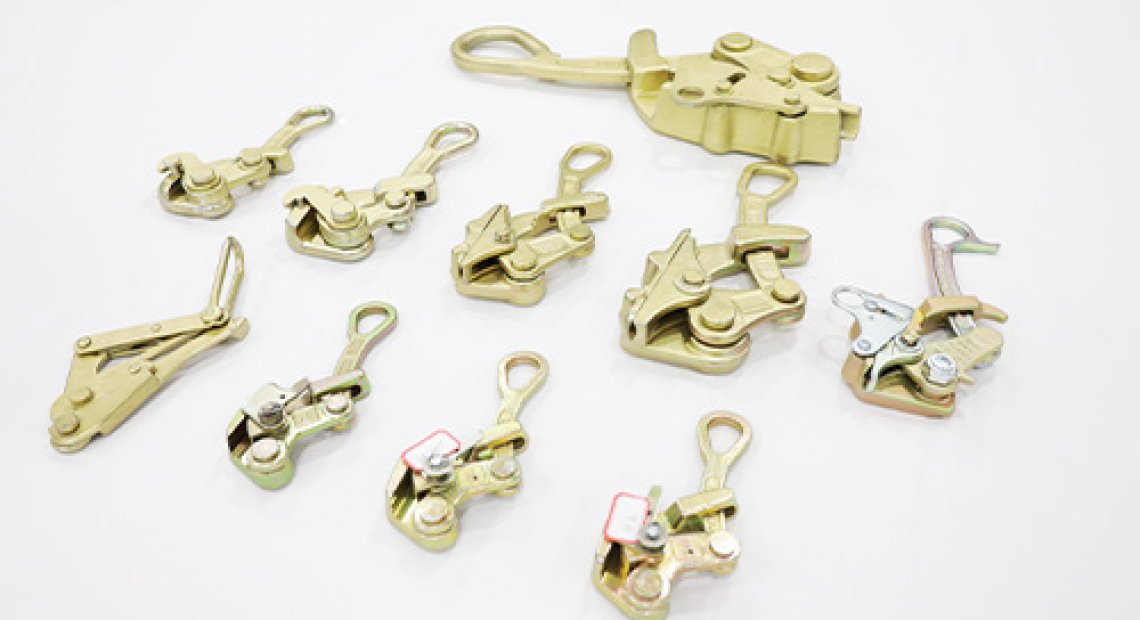

HULK Metal's Jaw Wire Cable Puller Grippers are designed to provide strong grip, smooth pulling, and enhanced safety in cable tensioning applications. Built with high-quality materials and advanced manufacturing techniques, our pullers deliver consistent performance under demanding conditions. Whether you need sawtooth-type or round-type models, our range meets various load capacities and cable sizes. Backed by strict quality control and comprehensive production capabilities, we ensure each gripper meets international standards. With OEM services available, we help customers worldwide get customized solutions that fit their exact cable pulling needs.
Heavy duty wire rope pulling tools are one of our main products. They are made of high-performance alloy steel and can withstand greater tension.
We can provide steel jaw cable puller with wire diameter ranging from 2.03mm to 45.7mm and from 0.68 tons to 9 tons. Contact us to get the best price.
We can currently produce a variety of high-performance alloy steels that can be used for wire diameters between 0.08~1.8in (2.03~45.7mm), tensions between 1500~20000lbs (0.68~9tons) and for various wire types of Jaw Cable Gripper.
Steel Wire Rope Gripper is made of high-performance alloy steel by hot die forging. It has a variety of styles to suit more wires.
HULK Metal offers a versatile range of Jaw Grip Puller for Aluminum Cable models, from lightweight wire grip pullers to heavy-duty cable pulling tools. With OEM customization, advanced production lines, and stringent quality controls, we ensure performance, durability, and after-sale support.
ABC Conductor Grips are special tools designed for ABC wire pulling, tightening and other working environments. Its clamp can better protect the ABC when pulling. We offer a variety of ABC Conductor Grips. Contact us for better prices.
The Jaw Rope Puller is designed for tensioning and routing ropes, cables, wire ropes, etc. We can currently provide Jaw Rope Pullers with clamping wire diameters ranging from 1.9mm to 45.7mm and pulling forces ranging from 1500 to 20000LBS.
Feature:
1. Available 1500 to 20000 LBS
2. ISO 9001 Certification
3. Suit For 1.9 mm to 45.7mm Various Cables, Wire Ropes
4. Factory Direct Sales
Description:
Jaw Wire Puller orders will undergo strict sampling inspections before leaving the factory to ensure that the order qualification rate can reach 99.99%. We provide QA services. You can purchase with confidence.
Guy wire jaw grip puller is a tool designed to clamp wires and provide a fulcrum for tensioning them. It is simple to operate and can protect the wires while providing a stronger clamping force. We are a Chinese factory and can provide products with higher cost performance.
