1.Double Coating, Hot- Galvanized, Powder Coating
2.Size: 33.7mm, 42.4mm, 48.3mm, 1", 1 1/4", 1 1/2"
3.ISO 9001 Certified
4.Various Key Clamp Fittings Available
124 type galvanized key clamp fitting can be used in any scenario where two pipes need to be formed into 125° to 178°, and it is very easy to install. We can achieve lower prices and faster delivery, and look forward to your inquiry.
| Pipe Info | |||
 | |||
| Material | Carbon Steel | ||
| Surface | Hot Galvanized / Powder Coating | ||
| Color | Refer To Pantone Color Card | ||

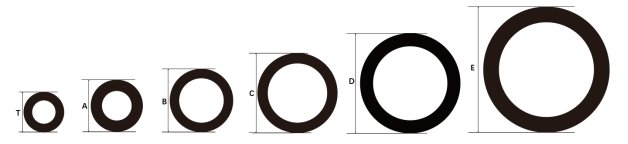

| Pipe Sizes Comparison | |||
| Size | Inner Diameter | Outer Diameter | |
| Nominal (DN) | in | mm | |
| T | 15 | 1/2" | 21.3 |
| A | 20 | 3/4" | 26.9 |
| B | 25 | 1" | 33.7 |
| C | 32 | 5/4" | 42.4 |
| D | 40 | 3/2" | 48.3 |
| E | 50 | 2" | 60.3 |
| Color only refers to the color of the powder coating. The powder coating of the pipe will allow for color tolerance, Kindly contact us for details. The quality of the tube will meet the usage requirements in most scenarios. For special scenarios, Kindly contact us for performance testing. | |||
| Basic Info Table of Fittings | |||||||||||
 |  | ||||||||||
| Name | 124 | ||||||||||
| Material | Malleable Iron / Ductile Iron | ||||||||||
| Surface | Hot-dip Galvanized / Double Galvanized / Powder Coating / Raw Black | ||||||||||
| Color | Refer To Pantone Color Card | ||||||||||

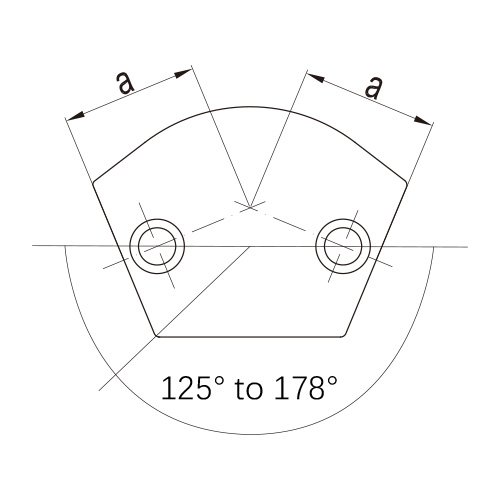

| Pipe Sizes Comparison | Surface Finishing & Code | Dimensions(mm) | |||||||||
| Size | DN | in | mm | Hot-dip Galvanized | Double Galvanized | Powder Coating | Raw Black | a | b | C | D |
| B | 25 | 1" | 33.7 | HM-G-124-B | HM-D-124-B | HM-PC-124-B | HM-B-124-B | 40 | |||
| C | 32 | 5/4" | 42.4 | HM-G-124-C | HM-D-124-C | HM-PC-124-C | HM-B-124-C | 47.5 | |||
| D | 40 | 3/2" | 48.3 | HM-G-124-D | HM-D-124-D | HM-PC-124-D | HM-B-124-D | 44 | |||
124 Elbow is a special type of Key Clamp fittings, it is designed for the guardrail system when the angle between the uprights and the handrail is between 125° and 178°. Later, it was extended to the guardrail system to connect two rails at an angle to each other, as well as many DIY structures.
Handrail system with an inclination angle of 25° to 80°: used to connect the uprights below and the upward handrail pipe. Such as wheelchair access, home stairs, climbing guardrails, etc.
When an angled site needs to be enclosed, the 124 Type Galvanized Key Clamp Fitting can be used to connect two rails with an angle between 125° and 178°. Such as seaside guardrails, platform guardrails, roofs, etc.
It can be used to build outdoor recreational facilities and fitness facilities. Indoor furnishings, brackets, tables and chairs, etc.
124 Type Galvanized Key Clamp Fitting structure and installation:
It has two sockets, each with an Allen Bolt. The middle part has a larger inner cavity, so that the pipe can adjust its angle inside, and the mouths of the two sockets fit the outer diameter of the pipe.
In most cases, it can only be used in a system under construction. If it needs to be installed in a completed system, the feasibility of this idea needs to be carefully considered.
1. Insert one end of the two pipes into the 124 Type Galvanized Key Clamp Fitting,
2. Adjust the angle of the pipes and insert the other end into the sockets of other Key Clamp Fittings,
3. Slowly push the two pipes to fully insert the Key Clamp Fittings,
4. Use the Allen Key to tighten the four Allen Bolts (two on the 124 Type Fitting and one on each of the other Key Clamp Fittings).
124 Type Galvanized Key Clamp Fittings mainly have three types: Double Coating, Hot-dip Galvanizing, and Powder Coating. Some customers also purchase raw black (without any surface treatment). We should consider the use environment of Key Clamp Fittings in specific projects. For example, in a chemical plant, we need to consider the pH of the environment and whether it will react with the surface of the Key Clamp Fittings.
Cast iron, the common ductile iron and malleable cast iron, the performance of the two materials is similar in most cases. The performance standard of Key Clamp Fittings needs to consider its usage scenario.
It is stainless steel, which has strong rust resistance and fastening ability.
Its body is made of sand casting, finished and galvanized.
Our handrail bracket structural pipe fittings have multi-type surface treatments to prevent corrosion, precise dimensions, and a strong load-bearing capacity. They provide a longer service life and a more secure installation, making them perfect for outdoor safety rails, balconies, and staircases.
