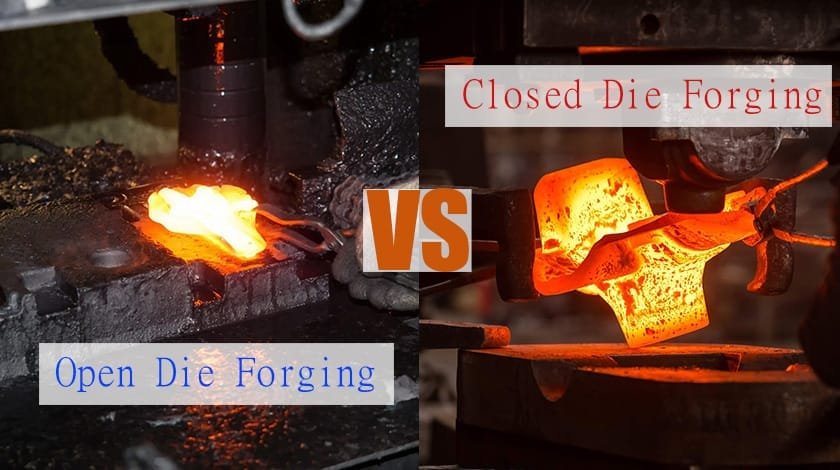

Open Die Forging vs. Closed Die Forging: An In-Depth Analysis

Forging is a vital manufacturing process that has been used for centuries to shape metal components for a wide variety of applications. Among the different forging methods, open die forging and closed die forging are two of the most widely used techniques. While both processes involve shaping metal using compressive forces, they differ significantly in their approach, advantages, limitations, and applications.

In this blog, we will analyze open die forging and closed die forging in detail, exploring their processes, advantages, disadvantages, and ideal applications. By the end, you will have a comprehensive understanding of which forging method suits different manufacturing needs.

Open Die Forging

What is Open Die Forging?

Open die forging, also known as smith forging, is a process in which a metal workpiece is deformed between flat or simple-shaped dies that do not enclose the material completely. The process is typically performed at high temperatures to make the metal more malleable.

How Open Die Forging Works

Heating: The metal is heated to its plastic deformation temperature.

Positioning: The workpiece is placed between the dies.

Forging: Repeated hammering or pressing deforms the metal into the desired shape.

Manipulation: The operator repositions the workpiece to forge it from different angles and achieve the final dimensions.

This method requires skilled operators to manipulate the workpiece to produce the required shape and dimensions.

Advantages of Open Die Forging

Flexibility: Can produce a wide range of shapes and sizes, from simple to complex geometries.

Improved Mechanical Properties: Produces components with superior grain flow, leading to enhanced strength, toughness, and fatigue resistance.

No Size Limitation: Suitable for large, heavy components such as shafts and discs.

Cost-Effective for Low Volumes: Ideal for custom or small-batch production due to its relatively simple setup.

Disadvantages of Open Die Forging

Lack of Precision: Dimensional accuracy is limited compared to other forging methods.

High Operator Skill Requirement: Success heavily depends on the expertise of the operator.

Longer Lead Times: The manual process and repeated hammering can be time-consuming.

Surface Finish: Often requires secondary machining for a smoother finish.

Applications of Open Die Forging

Open die forging is commonly used for manufacturing large components such as:

Turbine shafts

Pressure vessels

Crankshafts

Flanges

Rings

Closed Die Forging

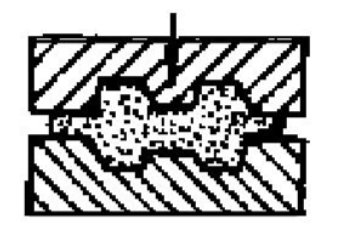

What is Closed Die Forging?

Closed die forging, also known as impression die forging, involves placing the metal workpiece between dies that enclose the material in a cavity. The dies are designed to have the exact shape of the final component. When compressive forces are applied, the metal flows into the cavity to take its shape.

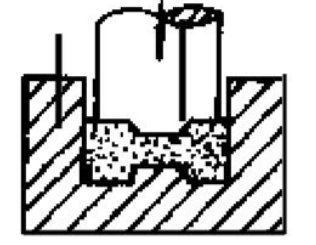

How Closed Die Forging Works

Die Design: Custom dies are created for the specific component.

Heating: The metal workpiece is heated to make it more pliable.

Positioning: The workpiece is placed in the die cavity.

Forging: High-pressure hammering or pressing forces the metal to flow into the die cavity, filling all voids.

Flash Removal: Excess material (flash) is trimmed off to achieve the final shape.

This process is more automated and requires less manual intervention compared to open die forging.

Advantages of Closed Die Forging

High Precision: Produces components with excellent dimensional accuracy and intricate details.

Repeatability: Ideal for high-volume production with consistent quality.

Superior Surface Finish: Requires minimal post-processing or machining.

Efficient Material Use: Reduces waste due to precise metal flow control.

Disadvantages of Closed Die Forging

High Initial Costs: Die design and manufacturing are expensive, making it less suitable for low-volume production.

Size Limitation: Limited to smaller and medium-sized components.

Tool Wear: Dies are subject to wear and tear, requiring regular maintenance or replacement.

Longer Preparation Time: Custom die production adds to the lead time.

Applications of Closed Die Forging

Closed die forging is widely used in industries requiring high-precision components, such as:

Automotive parts (gears, connecting rods, crankshafts)

Aerospace components

Medical devices

Hand tools and hardware

Key Differences Between Open Die Forging and Closed Die Forging

Selecting the Right Forging Method

Choosing between open die forging and closed die forging depends on several factors:

Component Size

Open die forging is preferred for large components like shafts or heavy-duty industrial parts.

Closed die forging is ideal for smaller, detailed components.

Production Volume

Open die forging is cost-effective for custom or low-volume production.

Closed die forging is the go-to method for mass production.

Design Complexity

Closed die forging excels at producing intricate shapes with tight tolerances.

Open die forging is better suited for simple or non-standard shapes.

Budget

Open die forging has lower initial costs but higher labor costs.

Closed die forging requires significant upfront investment but becomes cost-efficient for large volumes.

Material Waste

If material efficiency is critical, closed die forging is the better choice.

Mechanical Properties

Both methods can produce strong components, but open die forging often results in better grain structure and mechanical performance for large parts.

Case Comparison

Open Die Forging

Shipbuilding: Manufacturing large rudder stocks and propeller shafts.

Power Generation: Creating turbine shafts for power plants.

Oil & Gas: Producing pressure vessels and flanges for pipelines.

Closed Die Forging

Automotive: Producing gears, connecting rods, and other high-precision parts.

Aerospace: Creating lightweight and strong components like turbine blades.

Consumer Goods: Forging tools, wrenches, and fasteners.

Sustainability in Forging

Both open die and closed die forging can be adapted to meet modern sustainability goals:

Material Recycling: Scrap metal can be recycled to reduce waste.

Energy Efficiency: Using energy-efficient furnaces for heating the workpieces.

Optimized Processes: Advanced simulation software can reduce trial and error, minimizing waste and energy consumption.

Conclusion

Open die forging and closed die forging are two essential techniques in the world of metal forming, each with unique strengths and limitations. Open die forging shines in its versatility and ability to produce large components, while closed die forging is unmatched in precision and efficiency for high-volume production.

By understanding the key differences, advantages, and applications of these methods, manufacturers can make informed decisions to meet their production and quality goals. Whether you are forging turbine shafts or intricate aerospace components, the right choice depends on your specific requirements for size, volume, complexity, and cost.

If you have additional insights or specific experiences with these forging techniques, feel free to share them in the comments below!
