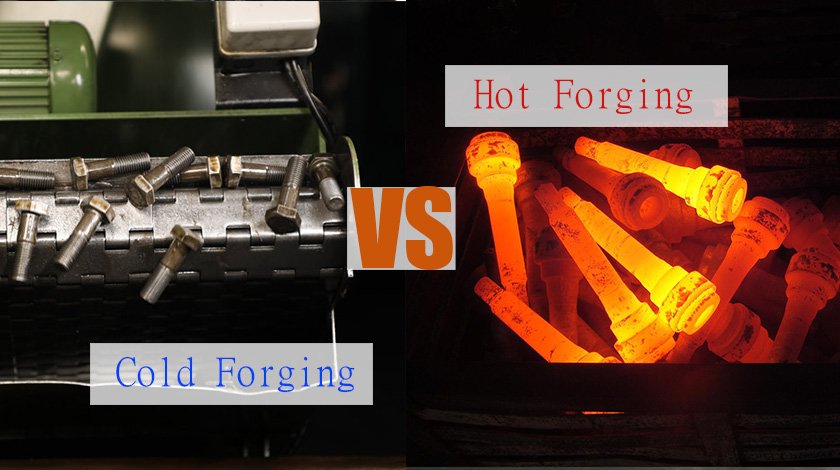

Forging is an important metalworking process that involves heating, deforming and solidifying metal to obtain parts with specific shapes and properties. According to the different processing temperatures, forging is divided into hot forging and cold forging. This article will analyze the characteristics and applicable scenarios of the two processes in detail from nine aspects: temperature range, material performance, mold life, production efficiency, surface quality, shape accuracy, energy consumption, economic cost and technology development trends.
Processing temperature is the core indicator that distinguishes hot forging from cold forging.
The processing temperature of hot forging is usually above the recrystallization temperature of the material. For example, the recrystallization temperature of steel is usually 700°C to 900°C, while the typical temperature range of hot forging is 900°C to 1250°C. At this time, the crystal structure of the metal is in a dynamic recrystallization state, the plasticity of the material is significantly improved, and the deformation resistance is reduced, so processing with large deformation can be achieved.
The hot forging process is often used for processing large-size workpieces or parts with complex shapes, such as crankshafts, aircraft turbine blades, etc. Since high temperature reduces the yield strength of the material, the pressure required for deformation is significantly reduced, which is beneficial to both saving equipment energy consumption and reducing mold stress.
The processing temperature of cold forging is usually lower than the recrystallization temperature of the material and is even performed at room temperature (about 20°C to 400°C). In this temperature range, the metal has higher yield strength and lower plasticity, but higher surface quality and dimensional accuracy. Cold forging is suitable for small and medium-sized parts (such as bolts, gears, bearings) and workpieces that require high surface finish and shape accuracy.
Tie rods in steel automobile suspension systems are formed by hot forging, and their large deformation and complex three-dimensional curve structures are easier to achieve at high temperatures.
Precision gears and shafts: Often produced using cold forging to reduce subsequent machining steps.
Hot forging is suitable for large deformation and complex shapes, while cold forging focuses on small deformation and high-precision processing.
The forging process significantly changes the microstructure of the metal, affecting its final properties.
At high temperatures, the material will undergo dynamic recrystallization, destroying the original grain structure and forming uniformly refined grains. This process can significantly increase the toughness and plasticity of the metal and reduce the hardness and strength, so hot-forged parts usually require subsequent heat treatment processes (such as quenching and tempering) to restore or increase strength.
Dynamic recrystallization can also eliminate defects caused by casting or primary processing, such as pores, segregation and coarse grains, further improving the mechanical properties of the material.
During the cold forging process, the metal undergoes plastic deformation at low temperatures, and its internal grains are compressed and stretched, forming a large number of dislocations. This "work hardening" phenomenon significantly increases the strength and hardness of parts, but is also accompanied by a decrease in plasticity and toughness, increasing the risk of cracks.
Hot-forged aerospace turbine disks usually undergo post-forging heat treatment to achieve ideal toughness and fatigue properties.
Cold-forged automotive bolts have high strength due to work hardening and can be directly assembled and used.
Hot forging improves the toughness and plasticity of the material, while cold forging improves the strength and hardness. Choosing the right forging process based on application requirements is particularly critical.
Die life directly affects the economy and sustainability of forging production.
At high temperatures, molds are subjected to the combined effects of thermal fatigue, friction and impact for a long time. The surface of the mold may be cracked, peeled and worn, especially when machining carbide or mass production. In order to extend the life of the mold, heat-resistant mold steel (such as H13 steel) is usually used, and the thermal fatigue resistance is enhanced through surface coating (such as titanium aluminum nitrogen coating) or heat treatment.
Although cold forged molds are not affected by high temperatures, they need to withstand greater unit pressure. High-precision cold forging molds usually use high-strength tool steel, and adopt precision machining and polishing processes during mold manufacturing to reduce surface defects.
Hot forging molds are susceptible to thermal fatigue and have a relatively short lifespan; cold forging molds have higher requirements on materials and manufacturing processes due to their high pressure bearing.
The production efficiency of the two forging processes varies depending on the complexity of the parts and the production batch.
The metal has good fluidity at high temperatures and low deformation resistance, so complex parts can be formed in a shorter time. However, due to the need for heating equipment and cooling time of the parts, the overall production rhythm is slow.
Cold forging eliminates the heating step, the process flow is simple, and it is particularly suitable for efficient mass production. However, for complex parts, multiple stampings may be required, or step-by-step processing through precision molds, which slightly affects the efficiency of a single piece.
Hot forged aluminum alloy wheels: Due to their complexity and large size, the processing time of a single piece is long, but it meets the needs of mass production.
Cold forged mobile phone metal shell: High single piece efficiency and no subsequent surface treatment is required.
Surface quality is an important indicator of part performance and appearance.
Metal surfaces are prone to oxidation and decarburization at high temperatures, forming oxide scale and rough surface. To obtain good surface quality, subsequent processing (such as sandblasting, pickling or polishing) is usually required.
Cold forging is carried out at low temperature to avoid oxidation, and the surface finish and dimensional accuracy of the parts are high, and can even directly meet the use standards.
During the forging process, the shape accuracy requirements determine the degree of subsequent machining.
Hot forging is suitable for processing parts with complex shapes and large sizes. However, metals are prone to thermal expansion, contraction and deformation at high temperatures, which makes the dimensional accuracy of parts low, usually between ±0.5mm and ±2mm. Hot forged parts usually require subsequent machining (such as turning or grinding) to meet the design specifications. The accuracy deviation of this process can be optimized through mold design, process control and multiple forging.
Cold forging is known for its high precision. The processed parts can usually directly meet the final size requirements, with a tolerance range of up to ±0.01mm to ±0.1mm. Since low-temperature processing does not cause thermal expansion and contraction, the cold forging process can provide higher shape and dimensional accuracy, especially when manufacturing slender, complex and small parts.
Hot forged train wheels require lathe processing to ensure accurate installation dimensions.
Cold forged rolling bearing inner rings can be assembled directly, eliminating the need for subsequent machining.
Hot forging has low precision and requires subsequent processing; cold forging has extremely high dimensional accuracy and is suitable for parts that are directly used.
Energy consumption directly affects the economic and environmental impact of the forging process.
High-temperature operation requires a lot of energy, especially for large batches or large-sized workpieces, and the power demand of the heating equipment is high. In addition, temperature control equipment (such as heating furnaces and induction heaters) are continuously running in production, resulting in low energy efficiency. This makes hot forging uncompetitive in an environment with high energy costs.
Cold forging does not require a heating step, so energy consumption is significantly reduced. However, since cold forging requires higher equipment pressure, the power consumption of the hydraulic system or mechanical punch may be higher. In general, cold forging has advantages in terms of energy consumption per unit product, especially in the mass production of small parts.
Hot forging of aviation-grade parts (such as turbine blades) consumes a lot of energy due to high-temperature and complex processing.
Cold forging of mobile phone metal shells has lower production energy consumption and meets the needs of sustainable manufacturing.
Hot forging has high energy consumption and is suitable for areas with low-cost energy; cold forging is more energy-efficient and meets modern environmental protection requirements.
The economic efficiency of the forging process is one of the important considerations for selecting the process.
The equipment investment for hot forging is relatively low, and the cost of a single mold is controllable when processing complex parts, but high energy consumption and frequent mold replacement bring additional costs. Hot forging is suitable for small and medium-sized batch production or high-value large parts.
The design and manufacturing cost of cold forging molds is high, and the initial investment in equipment is large. However, its production process eliminates high-temperature heating, has low energy consumption, and has a low unit cost. Therefore, the cold forging process is particularly suitable for mass production and can quickly amortize mold and equipment costs.
Hot forging: The mold cost for producing 1,000 crankshaft parts is $50,000, and the unit energy consumption is 20 kWh/piece.
Cold forging: The mold cost for producing 100,000 bolts is $200,000, but the unit energy consumption is only 2 kWh/piece.
Hot forging is suitable for small batches and complex parts, while cold forging is more suitable for mass production.
Modern manufacturing technology is constantly developing, and hot forging and cold forging are also being continuously optimized.
Isothermal forging: Reduce thermal fatigue and increase mold life through slow cooling.
Induction heating technology: Quickly and efficiently heat metal, reduce energy consumption and improve production efficiency.
Combine cold forging and hot forging, with high precision and high plasticity.
Use automated mold replacement and precise pressure control to improve efficiency and consistency.
Whether it is hot forging or cold forging, modern technology focuses on reducing carbon emissions and energy consumption. For example, renewable energy is used to heat hot forging equipment, or cold forging power consumption is optimized through efficient hydraulic systems.
From the above analysis, it can be seen that:
Hot forging is more suitable for manufacturing parts with complex shapes, large sizes, and high toughness, such as aircraft engine blades, ship parts, etc.
Cold forging dominates the production of high-precision, small-size parts (such as bolts, mobile phone shells).
The selection of appropriate forging process should be based on the following key factors:
Part use: determines whether high toughness or high precision is required.
Batch size: affects the calculation of economic costs.
Energy and environmental protection: Modern manufacturing has higher and higher requirements for low energy consumption and green production.
The two processes are not in opposition, but complement each other, and jointly promote the advancement of metal processing technology in the manufacturing field.
