RUAll T Bolts are measured with precision tools to verify length, diameter, and head size, ensuring accuracy for seamless channel installation.
1. Higher Quality Halfen Channel T Bolts
2. Shorter Production Cycle
3. Higher Quality Surface Treatment
4. More Cost-saving Freight Routes
5. More Comprehensive After Service.
Cast In Channel T Bolts from HULK Metal are precision-forged using high-performance alloy steel or stainless steel. Surface treatments, including electro-galvanizing or hot-dip galvanizing, enhance rust resistance, making them reliable for precast concrete connections in construction and infrastructure projects.
The parameters of Cast In Channel T Bolts cover standard and customized dimensions to meet diverse structural needs. Each bolt is designed with high load-bearing capacity and tested Safe Working Load (SWL) values to guarantee safety. Available in various thread sizes, head dimensions, and finishes, our T Bolts are suitable for different cast-in channel systems. Technical support ensures buyers receive accurate specifications for seamless installation and long-term performance.
| Bolt Code | HMB 72/48 | HMB 50/30 | HMB 40/22 | HMB 38/17 | HMB 28/15 |
| Picture |  |  |  |  |  |
| Suitable for Channel | HM 72/48 | HM 55/42, 52/34, 54/33, 50/30, 49/30 | HM 40/22P, 40/25 | HM 38/17 | HM 28/15 |
| Thread Type | M 20 | M 10 | M 10 | M 10 | M 6 |
| - | M 24 | M 12 | M 12 | M 12 | M 8 |
| - | M 27 | M 16 | M 16 | M 16 | M 10 |
| - | M 30 | M 20 | - | - | M 12 |
| Available l (mm) | 20, 30, 40, 45, 50, 55, 60, 65, 70, 75, 80, 100, 125, 150, 250, 300 | ||||
Cast In Channel T Bolts are specially designed fasteners for use with cast-in channels, providing secure, adjustable, and reliable connections. HULK Metal manufactures them with advanced forging and machining technology, ensuring accurate dimensions and excellent surface finishes. With robust material selection, surface treatments, and strict quality inspections, our T Bolts deliver higher strength, corrosion resistance, and durability, making them a trusted solution for precast concrete and structural anchoring applications worldwide.
Cast In Channel T Bolts are engineered fasteners designed to work exclusively with cast-in channels. They feature a unique parallelogram-shaped head, which allows easy insertion into the channel. Once rotated, the head locks firmly against the channel's edges, creating a stable connection. A groove near the threaded section of the head ensures secure engagement when tightened, preventing loosening during service.
These bolts are typically manufactured using high-performance alloy steel or stainless steel, offering superior strength and resistance to mechanical stress. To protect against rust, alloy steel bolts are treated with electro-galvanizing or hot-dip galvanizing, while stainless steel options offer natural corrosion resistance.
Due to their load-bearing reliability, Cast In Channel T Bolts are widely used in precast concrete construction, curtain wall installations, and structural fixing applications. Their combination of strength, durability, and adjustability makes them indispensable for modern construction projects.
High-performance alloy steel
Stainless steel
Electro-galvanizing
Hot-dip galvanizing
Cast In Channel T Bolts are designed to fit securely into cast-in channels. Their unique head design ensures strong engagement, providing high load capacity and reliable fixing for structural assemblies in construction, infrastructure, and precast concrete applications.
T-Bolts feature a T-shaped head that locks firmly into channel slots when rotated. They are commonly used in modular fastening systems, offering excellent stability, quick installation, and adjustability for various industrial and construction connections.
When inserted into a cast-in channel, the T Bolt's head aligns with the channel opening. After rotation, the parallelogram-shaped head locks against the channel edges. When tightened, the groove ensures secure engagement, distributing loads evenly for a stable and long-lasting connection.
We carefully analyze your order requirements, including bolt specifications, quantities, surface treatments, and delivery schedules. Our technical experts then prepare a complete production plan to ensure every Cast In Channel T Bolt matches your project's needs.
Only certified high-performance alloy steel and stainless steel are procured. Every batch of raw materials undergoes chemical composition testing, tensile strength verification, and dimensional checks to guarantee reliability before entering the forging stage, ensuring long-term stability of the final product.
Our production process combines advanced cold forging and precision machining to achieve accurate bolt dimensions and consistent strength. Automated equipment improves efficiency, while skilled workers ensure detail perfection, providing bulk buyers with reliable and durable T Bolts every time.
Cold forging shapes the bolt head and threads with superior strength retention. This process enhances grain flow, reduces material waste, and provides a smoother finish, resulting in T Bolts with excellent mechanical properties and high fatigue resistance.
Each production stage undergoes strict dimensional and thread inspections. Our QC team uses calibrated instruments to measure accuracy, ensuring each T Bolt matches international standards. Any non-conforming products are eliminated before entering the finishing stage.
Surface treatments such as electro-galvanizing or hot-dip galvanizing are applied to alloy steel bolts for corrosion protection. Stainless steel bolts undergo polishing to improve appearance and surface durability, extending service life in harsh environments.
Finished T Bolts are packaged in durable, moisture-resistant packaging with clear labeling for easy identification. Our in-house logistics team coordinates shipping, providing faster global delivery times and ensuring products arrive safely and ready for use.
Our technical team offers after-sales assistance for installation, application guidance, and troubleshooting. We provide responsive communication and tailored solutions to help customers maximize efficiency and reliability with Cast In Channel T Bolts in real project environments.
They are mainly used for anchoring precast concrete, curtain walls, and structural fixing applications in construction projects.
We offer high-performance alloy steel and stainless steel options, both tested for strength and durability.
Alloy steel bolts receive electro-galvanizing or hot-dip galvanizing, while stainless steel naturally resists corrosion.
Yes, we can customize dimensions, threads, and finishes to meet your specific requirements.
Our products are certified with CE and ISO 9001, ensuring international quality compliance.
With our in-house logistics team and shorter production cycles, we deliver faster than many competitors.
Yes, our technical experts provide guidance for selection, installation, and project-specific solutions.
Each batch undergoes load testing, and SWL data is provided according to your order specifications.

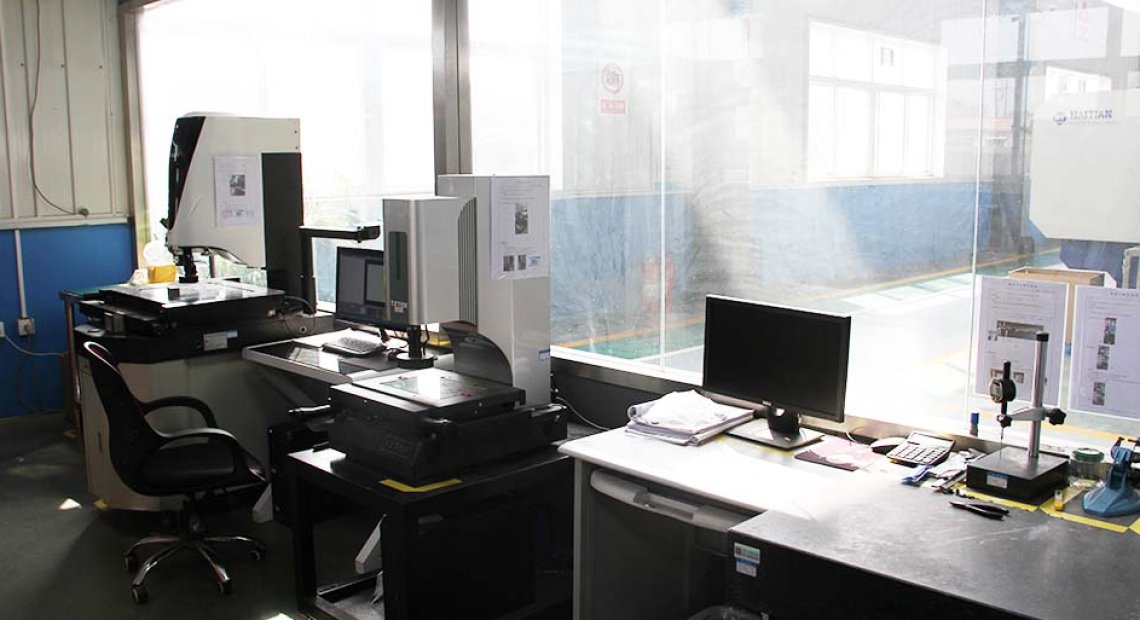

HULK Metal implements strict multi-stage quality control to ensure every Cast In Channel T Bolt meets international standards. From raw material testing to final inspection, our QC team applies advanced instruments and precise methods. Each bolt undergoes dimensional checks, thread inspections, load capacity testing, and surface finish evaluation. By strictly following ISO 9001 procedures, we guarantee safe, durable, and reliable products for bulk buyers across different industries.
All T Bolts are measured with precision tools to verify length, diameter, and head size, ensuring accuracy for seamless channel installation.
Before delivery, random samples are tested for strength, coating quality, and packaging integrity to ensure safe arrival and use.
Thread gauges confirm pitch, depth, and straightness, guaranteeing smooth fastening, proper torque transfer, and long-lasting performance under load.
Each batch is counted and checked against the order list, ensuring correct quantities are delivered without shortages or excess.
HULK Metal integrates multiple specialized factories to support large-scale production of Cast In Channel T Bolts. Our forging, precision casting, machining, and surface treatment factories work together under ISO 9001 management. The QC center monitors every process to ensure consistent quality. With advanced equipment, skilled workers, and efficient logistics, we provide reliable bulk supply capacity, faster lead times, and strong technical support to meet international buyers' project requirements.
Choosing HULK Metal means partnering with a supplier who provides more than just Cast In Channel T Bolts. We combine advanced production, strict quality control, shorter cycles, and faster delivery with complete technical support. With integrated forging, machining, surface treatment, and QC factories, we ensure reliable bulk supply capacity. Supported by CE and ISO 9001 certifications, we help global buyers reduce risks, save costs, and achieve more efficient construction project outcomes.
To support bulk buyers in making better purchasing decisions, we share technical resources and related articles about Cast In Channel T Bolts and precast fastening solutions. These articles cover topics such as material selection, installation guidance, load testing, surface treatment methods, and comparison with other precast concrete accessories. By reading these resources, buyers can gain more professional insights and practical knowledge, ensuring they select the right products and achieve the best performance in real construction projects.
In addition to Cast In Channel T Bolts, HULK Metal also supplies a wide range of precast concrete accessories to support different construction applications. Our product line includes lifting anchors, wire rope lifting loops, magnetic formers, spread anchor recess formers, dog bone lifting eyes, and more. All products are manufactured under strict ISO 9001 standards with CE certification available. By providing a one-stop supply chain, we help global buyers save time, reduce costs, and secure reliable bulk purchasing solutions.
HULK Metal offers high-quality foot anchors designed for secure lifting of precast concrete elements. Our CE and ISO 9001 certified lifting pin anchors ensure a threefold safety factor, shorter production cycles, and prompt delivery.
HULK Metal has supplied tens of millions of Lifting Pin Anchors ranging from 1.3 tons to 32 tons to hundreds of buyers around the world. We have a full range of products and a complete supply chain to provide you with quality services. We provide quality assurance services. Please feel free to inquire.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~45.0
≥3
HULK Metal stands out as a leading manufacturer of lifting eye anchors, specializing in precast concrete lifting eye anchors that meet stringent CE certification with a 3 times safety factor.
Q345/CM490/20M2/45#/Others
Galvanized/Black
1.3~5.0
≥3
CE Certified Spherical Head Lifting Anchors
All Size of Spherical Head Lifting Anchors
Can Pass 3 Times Safety Equal
Lifting Pins for Precast Concrete supplied by HULK Metal are CE certified. We can supply Lifting Pins that can pass the tensile test of 3 times the safety factor and strictly implement the IS0 9001 standard to provide high-quality services.
Wavy tail anchor is made of high-performance steel pipe and rebar extrusion after bending. Its SWL range is between 0.5 and 8.0 tons. There are two thread standards, M and RD.
HULK Metal is a well-known supplier in China, providing high-quality and cost-effective Precast Lifting Thread Insert. With a complete supply chain and a professional team, we have provided flat end insert, solid rod insert, Tubular insert and others to global customers. We provide complete QA services. Looking Forward Your Inquiry.
HULK Metal is one of the high-quality Flat End Lifting Insert suppliers in China. In order to provide better services and products, we have integrated a complete supply chain. We strictly implement ISO 9001 management, and after years of development, we can now supply a full range of CE certified Flat End Lifting Insert.
Solid Rod Lifting Inserts supplied by HULK Metal have passed the CE certification. They can pass the tensile test with 3 times the safety factor. We strictly implement ISO 9001 standards to manage the entire supply chain to ensure that we can provide you with better Solid Rod Lifting Inserts and services.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Fixing sockets with bent ends, also known as fixing inserts with bent ends, is essential for anchoring in precast concrete. These sockets provide robust points for fixing elements, featuring a bent design that enhances grip and stability.
Tubular Lifting Insert supplied by HULK Metal has passed CE certification. Tubular Lifting Insert can pass the 3 times safety factor tensile test, and each batch of goods has a comprehensive test report.
HULK Metal can provide you with RD and M standard 12-45 thread, SWL 0.5 to 8.0tons of Long Wavy Lifting Insert. Its international general standard is CE, which needs to pass the 3 times safety factor tensile force test.
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Flat End Lifting Socket
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Q345/20#/Stainless steel/Others
Galvanized/Black
8~52
≥3
Plate spread anchors from HULK Metal feature a welded steel plate and head design, embedded in concrete for edge lifting. Available in various sizes with galvanized options, they support loads up to 10 tons safely.
Unilateral erection anchors serve as specialized lifting inserts for precast concrete, designed for one-sided loading during element erection. They integrate with ring clutches and recess formers, providing stable anchor points that enhance safety and reduce panel stress in construction applications.
HULK Metal supplies flat foot anchors crafted from premium alloys for secure lifting in precast concrete projects worldwide.
HULK Metal stands as a reliable erection anchor supplier in China, delivering high-standard products for precast concrete lifting. Our anchors ensure secure handling with superior strength and corrosion resistance, backed by comprehensive production support for bulk orders.
HULK Metal supplies CE and ISO9001 certified spread anchors with reliable safety factors, faster delivery, and professional support. Choose our spread anchors for superior quality and complete precast lifting solutions.
HULK Metal delivers high-quality two-hole anchors, designed for secure lifting of precast concrete elements. Certified with CE and ISO 9001, our anchors ensure safety, durability, and efficiency.
HULK Metal's Precast Concrete Lifting Lugs, also known as Lifting Clutches or Lifting Eyes, are precision-engineered for heavy-duty lifting. Manufactured with high-strength materials, they ensure safety, durability, and efficiency in precast concrete lifting applications worldwide.
High-quality dog bone lifting eye with CE and ISO9001 certification. Strong, safe, and durable for precast concrete lifting. Shorter production cycle and faster delivery from trusted Chinese supplier HULK Metal.
HULK Metal supplies CE and ISO 9001 certified lifting clutch for pin anchor with 5 times safety factors, shorter production cycles, and complete after-sales support for global precast concrete projects.
Dog Bone Lifting Eye With Chain supplied by HULK Metal can pass the 5 times safety factor test and has been CE certified. We can provide 1.3 to 20 tons load groups.
Ring Clutch supplied by HULK Metal is CE certified and can pass the tensile test with a safety factor of 5. We have integrated a complete supply chain and formed a complete team to provide better products and services.
Precast Concrete Lifting Eyes supplied by HULK Metal has passed CE and ISO 9001 Certified and can passed 5 times safety factor testing. HULK Metal is an experienced manufacturer in China. Looking forward your inquire.
Q345/35CrMo/Others
Galvanized/Black/Powder-coat
1.3~32.0
≥5
Precision Casting
HULK Metal has a well-established supply chain to provide you with a full range of Clevis Slip Hooks, such as G43, G70, G80, CE marked, with latch or none, electro-galvanized, hot-dip galvanized or powder coated. We strictly implement ISO 9001 quality management and have a professional team to provide better services. We are committed to being your office in China, helping you with all aspects of your orders in China.
We have provided customers in more than 100 countries and regions around the world with Clevis Grab Hooks with strength standards such as G43 70 80 that can pass 2 to 4 Times Safety Factor detection.
HULK Metal is an experienced eye grab hooks supplier in China. We have integrated a complete supply chain and formed a professional team to provide better products and services. We can provide eye grab hooks with various specifications and surface treatments.
HULK Metal is an experienced supplier in China, providing Eye Slip Hooks in various materials, strengths, certifications, surface treatments and sizes. We have established a complete supply chain to ensure that raw materials, production and delivery are under control to provide higher quality and low-cost lifting hooks.
HULK Metal provides high-quality Rubber Recess Former for precast concrete lifting systems. They are used with Pin Anchor Recess Former and Spread Anchor Recess Former, ensuring precise recess shaping, shorter production cycles, and faster delivery.
HULK Metal supplies durable lifting pin anchor recess former for precast concrete elements, offering sizes from 1.3 to 32 tons with CE and ISO 9001 certification. Get shorter cycles and comprehensive support for bulk orders.
HULK Metal can provide a variety of precast magnetic formers. With higher quality and a more affordable price, it is your best choice.
The Spread Anchor Rubber Recess Former is made of durable rubber with a reinforced rear metal plate. It is designed for fixing spread anchors in precast concrete, ensuring accurate positioning, easy demolding, and reliable lifting performance.
As one of the excellent magnetic recess former suppliers in China, HULK Metal has advanced factories and perfect supply chain to provide you with high-quality products and services.
HULK Metal can provide CE-certified magnets for precast lifting and fixing inserts or sockets. Our factory has advanced machining equipment, laser cutting machines, and assembly lines, which can more efficiently complete CE-certified precast lifting fixing insert socket magnet with a higher pass rate.
HULK Metal's Electrical Box Fixed Magnets feature a durable rubber body combined with strong NdFeB magnets, ensuring reliable fixation of electrical boxes in precast concrete. These magnets are customizable in shape, size, and finish, providing flexibility for bulk orders.
Our Shuttering Magnets for Formwork are designed for precast concrete production, offering reusable and stable fixing solutions. They support different mold sizes and deliver better cost-efficiency for large-scale construction projects.
Our Embedded Corrugated Pipe Fixed Magnet combines premium steel housing with powerful magnets to ensure strong fixation during precast concrete production. It reduces installation time, improves efficiency, and provides consistent performance across different applications, helping customers achieve safer and more reliable concrete elements.
Cast In Channel T Bolts from HULK Metal are precision-forged using high-performance alloy steel or stainless steel. Surface treatments, including electro-galvanizing or hot-dip galvanizing, enhance rust resistance, making them reliable for precast concrete connections in construction and infrastructure projects.
Name Halfen Anchor Channel Precast Concrete Accessories
Molds Full Range Moulds
Materials Q235B / Stainless Steel / Customized
Process Rolling / Riveted / Welding / Customized
Surface Treatment Powder Coating / Galvanized / Black
Test Content & Data 1. Chemical composition; 2. Mechanical properties; 3. Metallographic inspection; 4. Inspection of appearance, size, shape and position tolerance;
Length(mm) 100~6050
High(mm) 15.25~48.5
Width(mm) 28~72
Name Wire Loop Box Precast Concrete Accessories
Molds Full Range Moulds
Materials Wire Rope / Steel Plate / Customized
SL(mm)±10 60 / 80 / 100 / 120 /140
Our Cast in Channel offers superior strength, certified safety, and flexible application for precast construction. Manufactured with advanced processes, it guarantees durability, easier installation, and faster delivery. HULK Metal supports bulk buyers with full technical service and reliable after-sales support.
Q345/20#/Stainless steel/Others
Galvanized
0.8~25.0
6~32
≥3
HULK Metal lifting loops are made from alloy or carbon steel, precision-threaded, and electro-galvanized for corrosion resistance. Designed for use with lifting sockets, they ensure safe, reliable handling of precast concrete components with a ≥4 safety factor.
As a top metalworking service provider, we want to let every customer experience a sense of security in purchasing, sales, etc., and better realize their value through continuously defining new standards for products and services.
